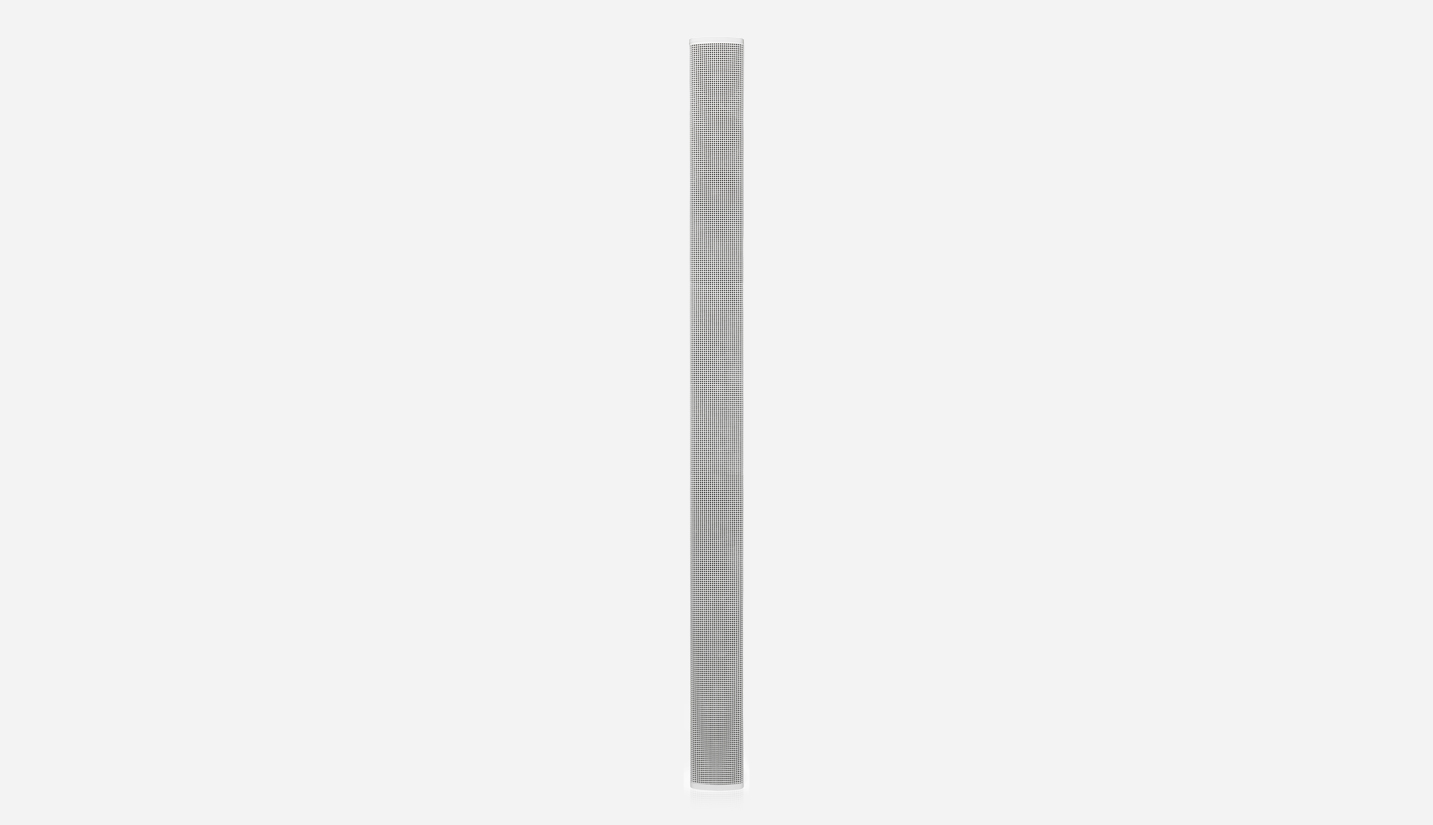

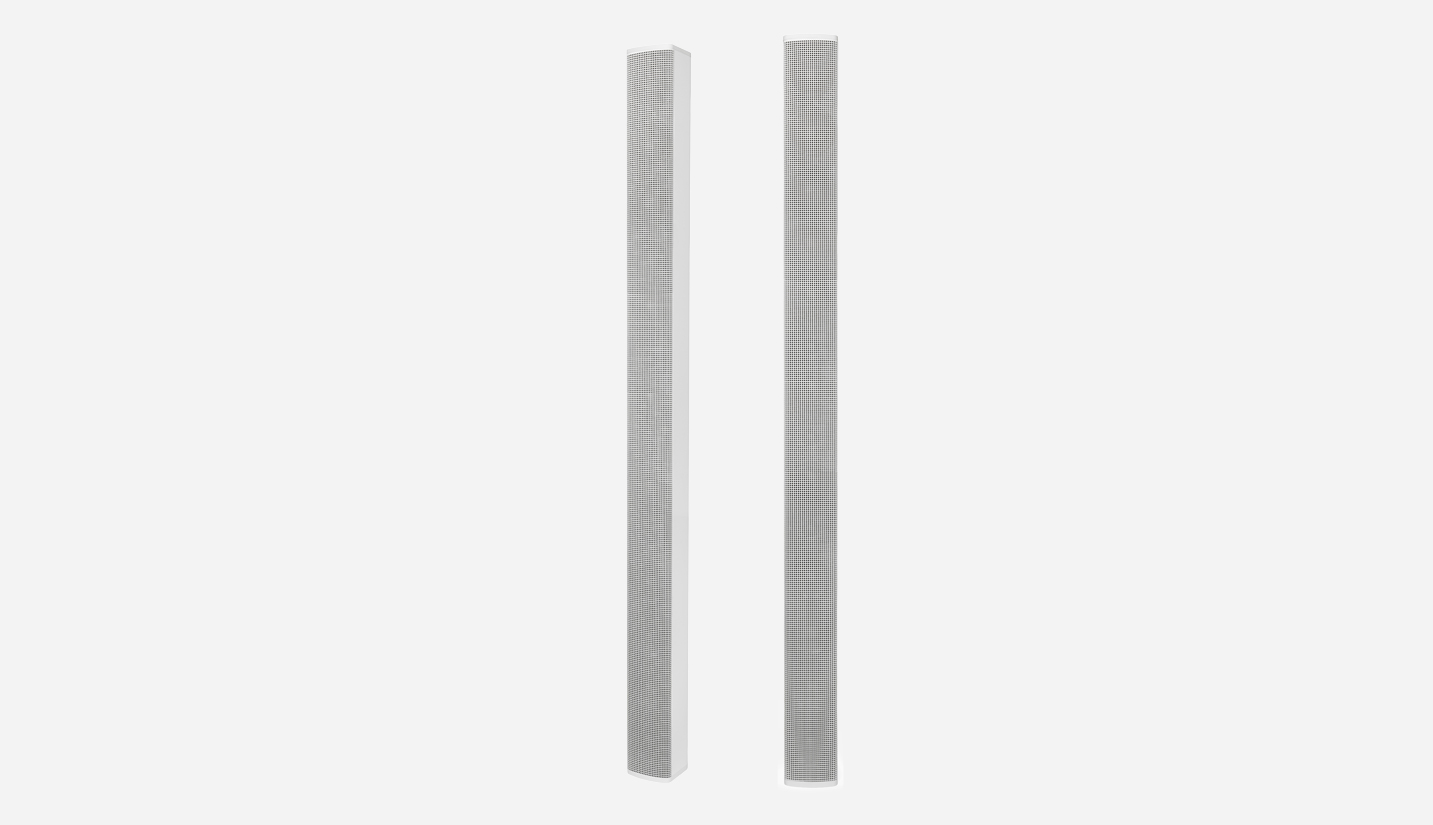

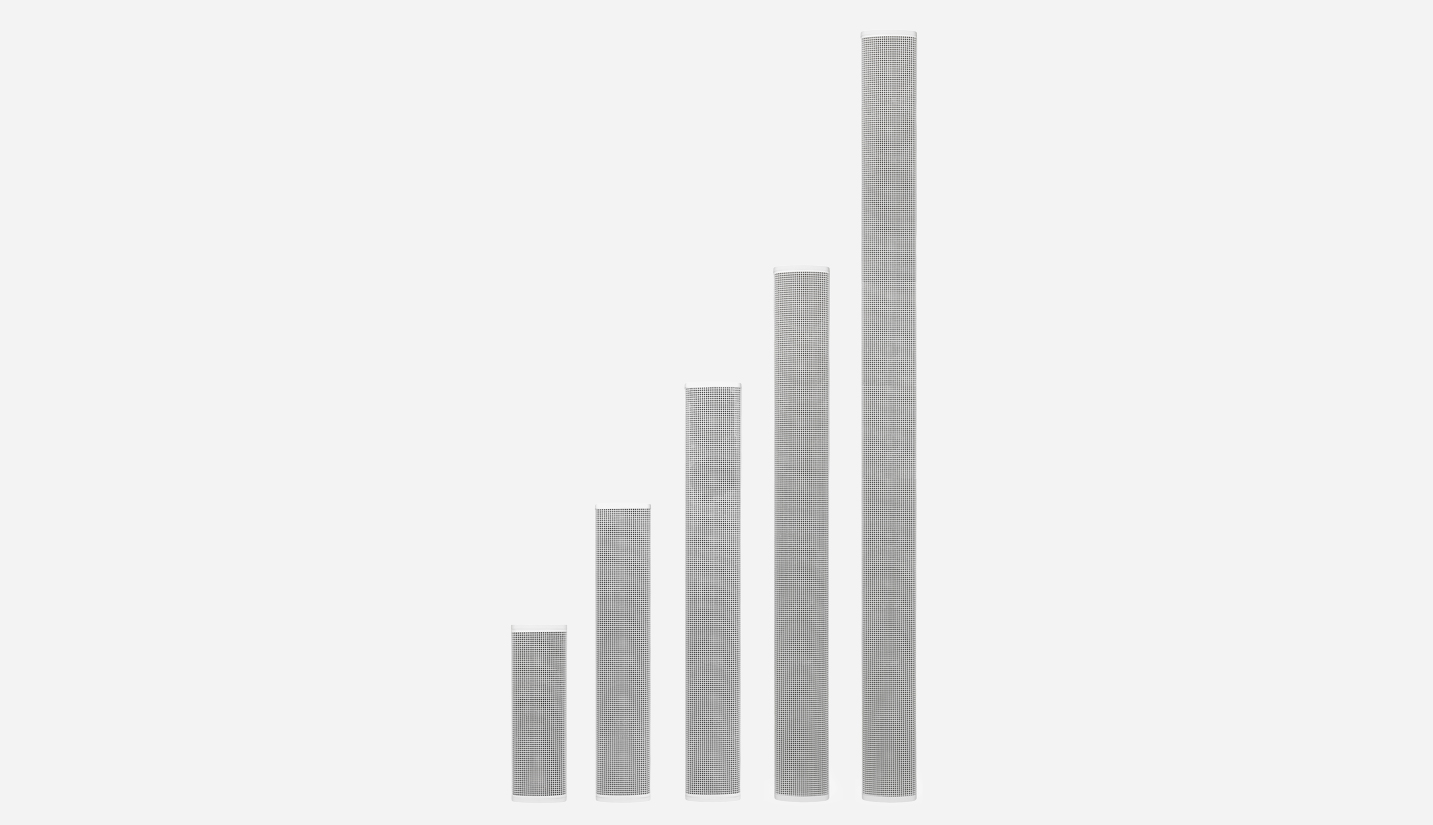

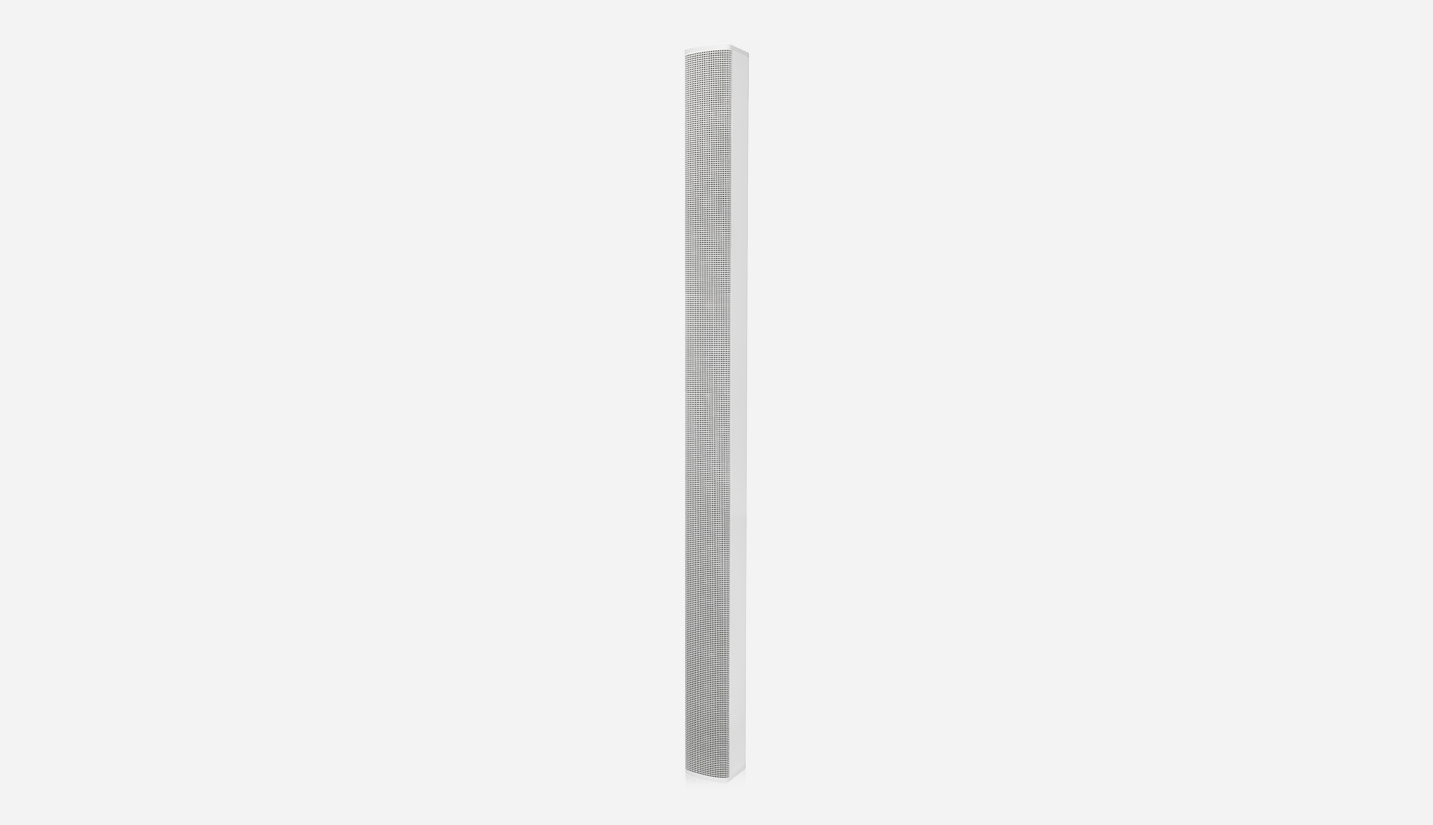

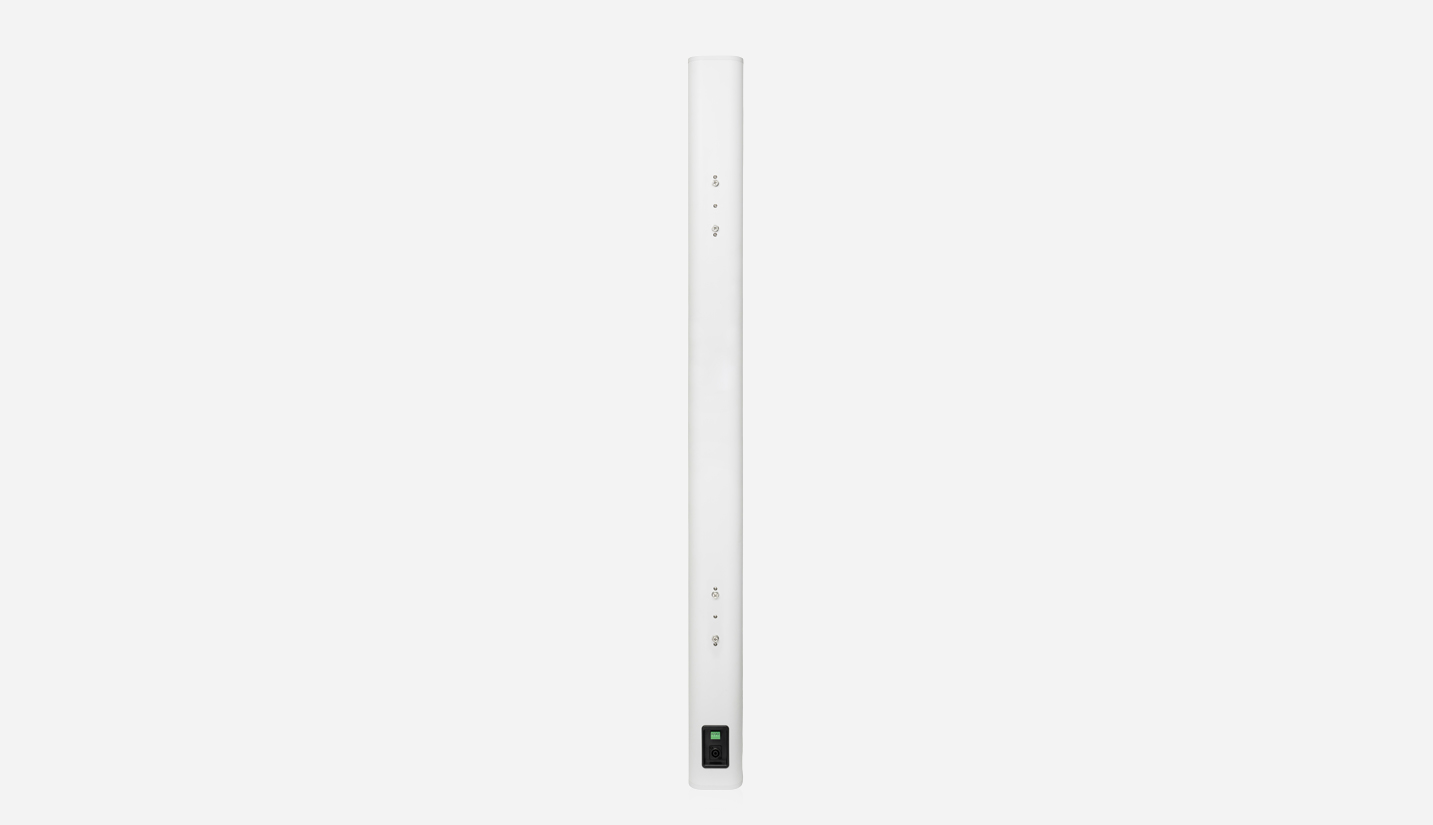

The DSP5210 series products include multiple models, each equipped with a different number of speaker units and tweeters to meet different audio needs and application scenarios.

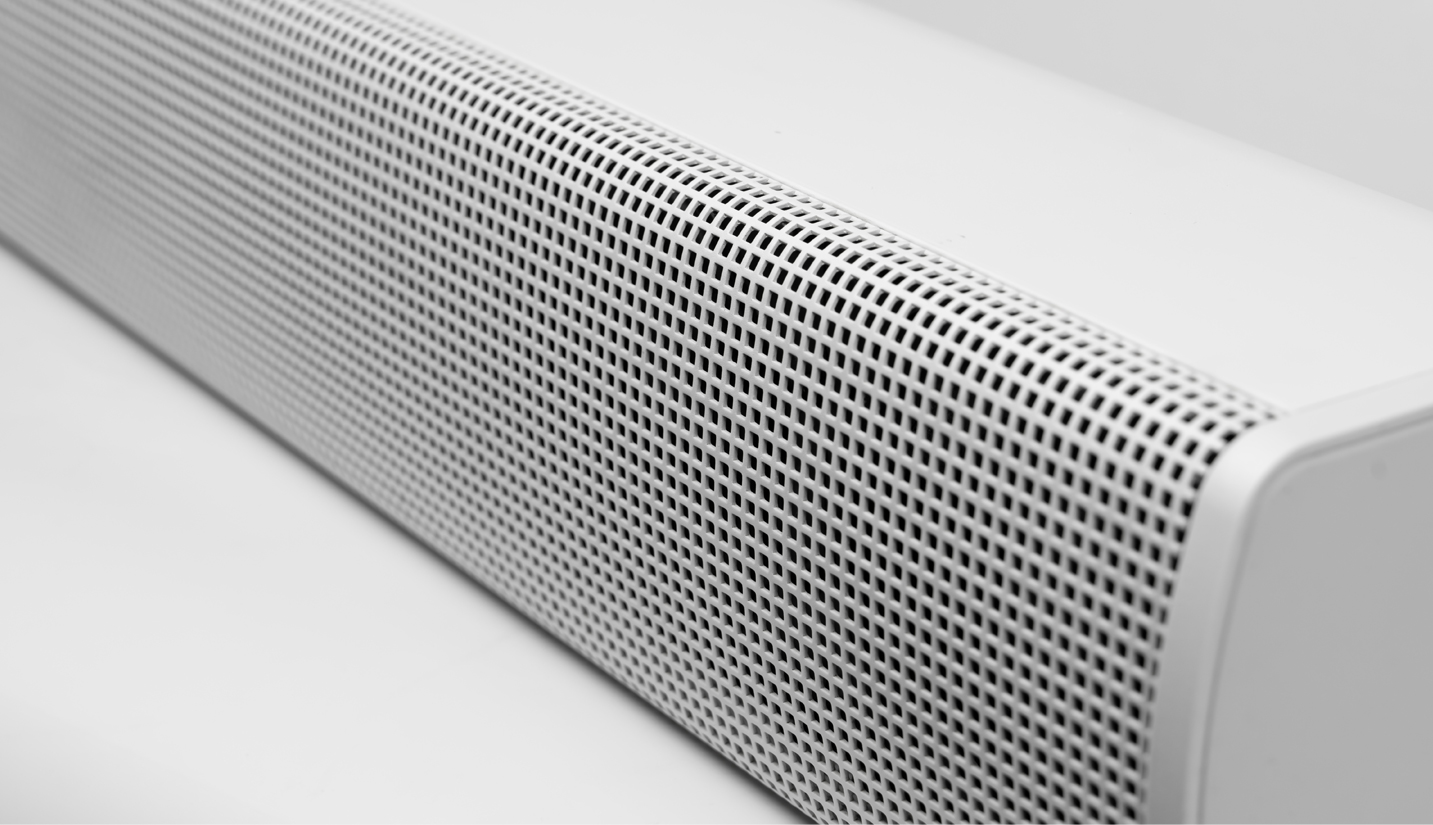

High-quality aluminum alloy structure, stable and durable, suitable for various decoration places.
Featuring a 4.5" full-range speaker and 1" tweeter, this speaker offers focused sound energy and superior clarity.
The product's sensitivity ranges from 88dB to 90dB, the rated power ranges from 100W to 600W, and the maximum sound pressure level is up to 117.8dB, making it suitable for application environments that require high volume and clarity.
The coverage angle of the DSP5210 series speakers is designed to be 140°(H)×20°(V), which not only ensures sound clarity and uniformity, but also takes into account the optimization of the spatial sound field.
Model | DSP5210 | DSP5420 | DSP5630 | DSP5840 | DSP1260 | |
Speaker Unit | Full-range | 4.5"x2 | 4.5"x4 | 4.5"x6 | 4.5"x8 | 4.5"x12 |
Tweeter | 1"x1 | 1"x1 | 1"x1 | 1"x1 | 1"x1 | |
Rated Power (RMS) | 100W | 200W | 300W | 400W | 600W | |
Impedance | 8Ω | 8Ω | 8Ω | 8Ω | 8Ω | |
Freq. Response | 120-18KHz | 120-18KHz | 110-18KHz | 110-18KHz | 95-18KHz | |
Sensitivity | 88dB | 89dB | 90dB | 90dB | 90dB | |
Maximum SPL | 108dB | 112dB | 114.7dB | 116dB | 117.8dB | |
Coverage Angle | 140°(H)×20°(V) | 140°(H)×20°(V) | 140°(H)×20°(V) | 140°(H)×20°(V) | 140°(H)×20°(V) | |
Dimension(LxWxH) | 123*142*393mm | 123*142*653mm | 123*142*912mm | 123*142*1166mm | 123*142*1687mm | |
Net Weight | 3.84KG | 6.46KG | 9.02KG | 11.65KG | 16.63KG | |
