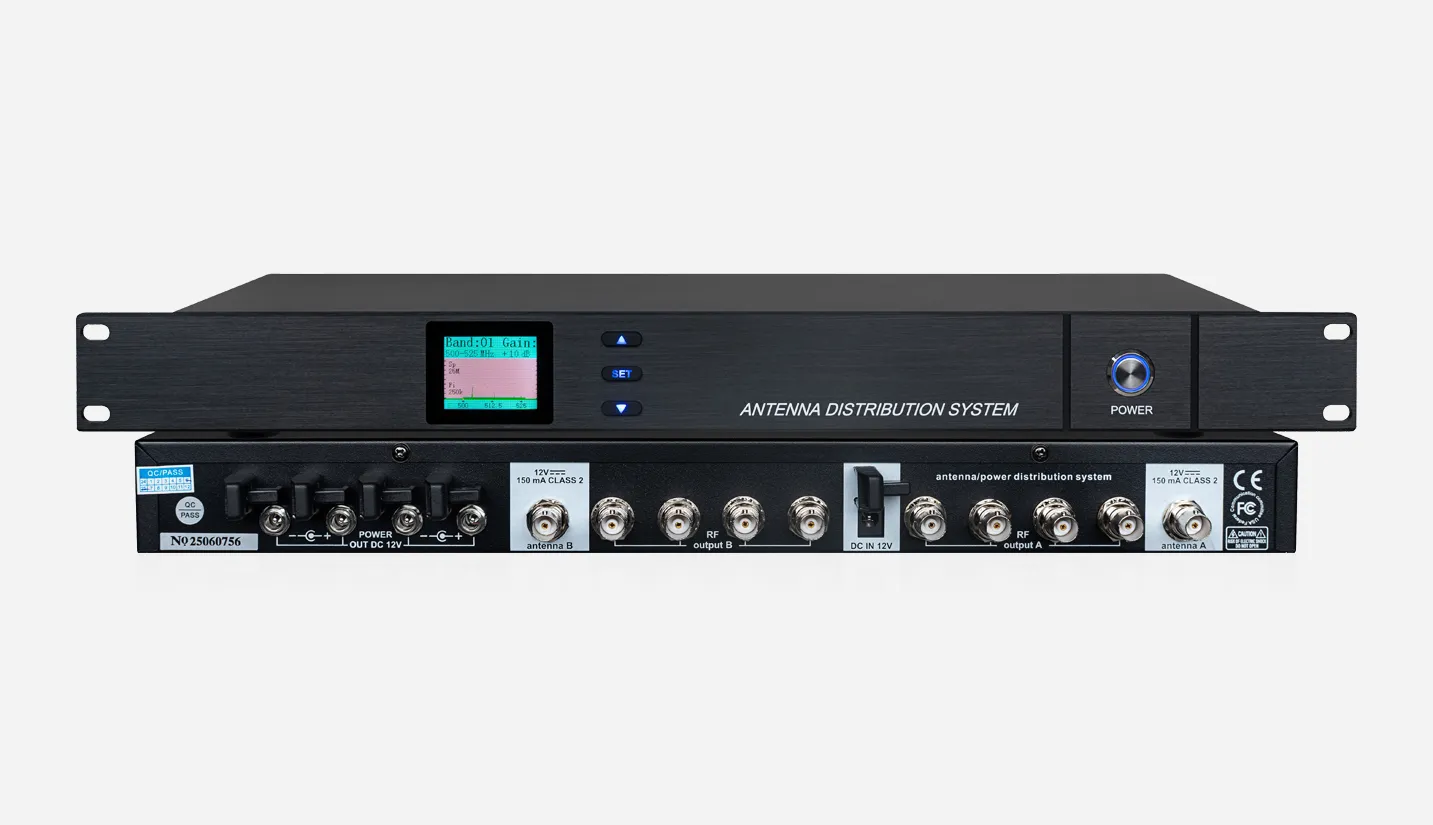

Expansion Capability: The antenna distribution system is designed for large-scale UHF wireless systems. Each main unit allows up to four wireless receivers to share the same two antennas.
Compatibility: The system is compatible with all wireless microphone receivers operating within the supported frequency range.
Cascade Port: By connecting one of the A or B output BNC ports to another antenna distribution system, the number of wireless microphone receivers can be further expanded.
Model | P8828 |
Operating Frequency | 500MHz-950MHz |
Gain | 5dB, 10dB, 15dB, 20dB (±2dB) |
Spectrum Scanning Range | 500MHz–950MHz |
Number of Scan Channels | 18 |
Input/Output Impedance | 50Ω |
Antenna Power Supply | +12V DC/150mA, center positive |
DC Output | 12V DC/3A(MAX)*4, center positive |
Power Supply | 12V DC/3A (MAX)*4, center positive |
Connector Type | BNC |
