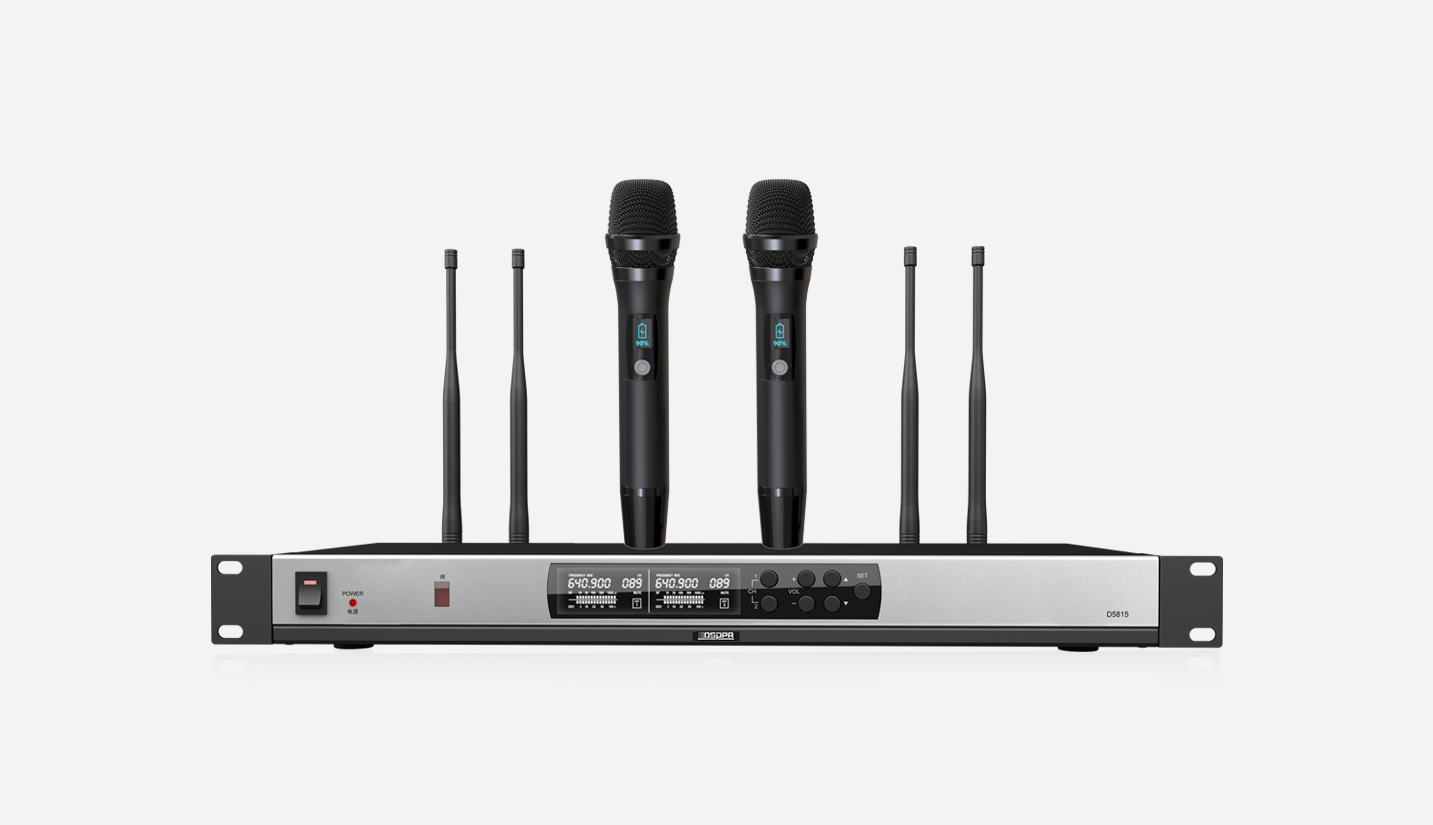

True Diversity UHF Wireless Microphone System (2 rechargable hand-held mic) - 翻译中... D5821L

Frequency Range

632-661.25MHz

Number of Channels

100

Frequency Step

250KHz

Dynamic Range

82dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-15KHz (±3dB)

Comprehensive S/N Ratio

>70dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

Up to 300m (in open environment)

Package Dimensions (L×W×H)

530×335×330mm

D5821/D5821L Gross Weight

5.2kg

D5822/D5823/D5822L/D5823L Gross Weight

4.6kg

D5824/D5824L/D5825L Gross Weight

5.3kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×100mm

Machine Dimensions

430×176×44mm

Gross Weight

3.9kg

Net Weight

2.3kg

Transmitter Type

Battery-powered desktop wireless microphone

Desktop wireless microphone (referred to the one in section 5)

Battery-powered handheld wireless microphone

Rechargeable handheld wireless microphone

Battery-powered portable transmitter

Rechargeable portable transmitter

Desktop wireless microphone (referred to the one in section 6)

Antenna Mode

Built-in onboard antenna

Built-in onboard antenna

Built-in onboard antenna

FPC antenna

1/4 wavelength whip antenna

1/4 wavelength whip antenna

FPC antenna

Output Power

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High Power 10dBm; low power 2dBm

Spurious Suppression

-60dB

-60dB

-60dB

-60dB

-60dB

-60dB

-60dB

Power Supply Mode

4×AA 1.5V alkaline batteries

3.7V/2000mA lithium battery

2×AA 1.5V alkaline batteries

3.7V/3000mA lithium battery

2×AA 1.5V alkaline batteries

3.7V/3000mA lithium battery

3.7V/3000mA lithium battery

Battery Life

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 10dBm; ＞15 hours at 2dBm

Desktop Microphone Rod Length

420mm

420mm

——

——

——

——

420mm

Function Display Mode

Display screen

Display screen

Display screen

Display screen

Display screen

Display screen

Display screen

Machine Dimensions

151×100×55mm

151×100×55mm

50×265mm

(Handheld part diameter ∅ 34~38mm)

35×250mm

110×64×25mm

(Excluding antenna length, plus 80mm if included)

95×65×30mm

142*142*65mm

Weight

0.45kg

0.45kg

0.45kg

0.2kg

0.1kg

0.35kg

0.65kg
