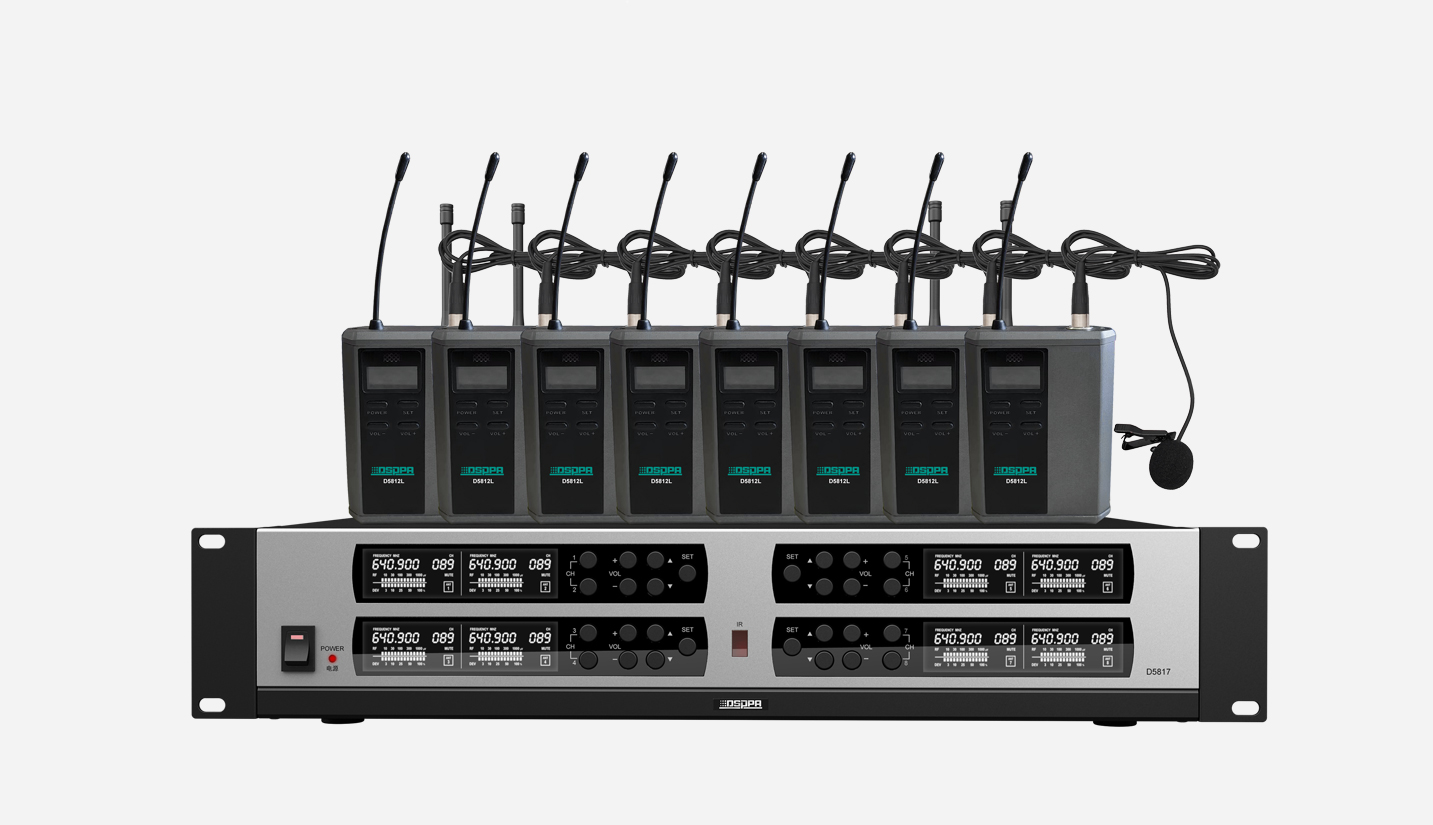

True Diversity UHF Wireless Microphone System (8 rechargable clip-type mic) - 翻译中... D5882L

Frequency Range

632-695.25MHz

Modulation Mode

Wideband FM

Adjustable Range

60MHz

Number of Channels

200

Channel Interval

250KHz

Frequency Stability

Within ±0.005%

Dynamic Range

88dB

Maximum Frequency Deviation

±45KHz

Audio Response

120Hz-16KHz (±3dB)

Comprehensive S/N Ratio

>73dB

Comprehensive Distortion

≤1%

Operating Temperature

-10°C - +40°C

Effective Range

150-200m (in open environment)

Package Dimensions (L×W×H)

530×335×330mm

D5881/D5881L Gross Weight

9kg

D5882/D5883/D5882L/D5883L Gross Weight

7.4kg

D5884/D5884L/D5885L Gross Weight

9.6kg

Receiver

Wireless Connector

BNC/50Ω

Sensitivity

≤-95dBm

Spurious Suppression

≥75dB

Function Display Mode

Display screen

Operating Power

DC12V, 600mA

Package Dimensions (L×W×H)

530×335×145mm

Machine Dimensions

430×176×88mm

Gross Weight

5.2kg

Net Weight

3.3kg

Transmitter Type

Battery-powered desktop wireless microphone

Desktop wireless microphone (referred to the one in section 5)

Battery-powered handheld wireless microphone

Rechargeable handheld wireless microphone

Battery-powered portable transmitter

Rechargeable portable transmitter

Desktop wireless microphone (referred to the one in section 6)

Antenna Mode

Built-in onboard antenna

Built-in onboard antenna

Built-in onboard antenna

FPC antenna

1/4 wavelength whip antenna

1/4 wavelength whip antenna

FPC antenna

Output Power

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High power 14dBm; low power 6dBm

High Power 10dBm; low power 2dBm

Spurious Suppression

-60dB

-60dB

-60dB

-60dB

-60dB

-60dB

-60dB

Power Supply Mode

4×AA 1.5V alkaline batteries

3.7V/2000mA lithium battery

2×AA 1.5V alkaline batteries

3.7V/3000mA lithium battery

2×AA 1.5V alkaline batteries

3.7V/3000mA lithium battery

3.7V/3000mA lithium battery

Battery Life

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 14dBm; ＞15 hours at 6dBm

＞10 hours at 10dBm; ＞15 hours at 2dBm

Desktop Microphone Rod Length

420mm

420mm

——

——

——

——

420mm

Function Display Mode

Display screen

Display screen

Display screen

Display screen

Display screen

Display screen

Display screen

Machine Dimensions

151×100×55mm

151×100×55mm

50×265mm

(Handheld part diameter ∅ 34~38mm)

35×250mm

110×64×25mm

(Excluding antenna length, plus 80mm if included)

95×65×30mm

142*142*65mm

Weight

0.45kg

0.45kg

0.45kg

0.2kg

0.1kg

0.35kg

0.65kg
