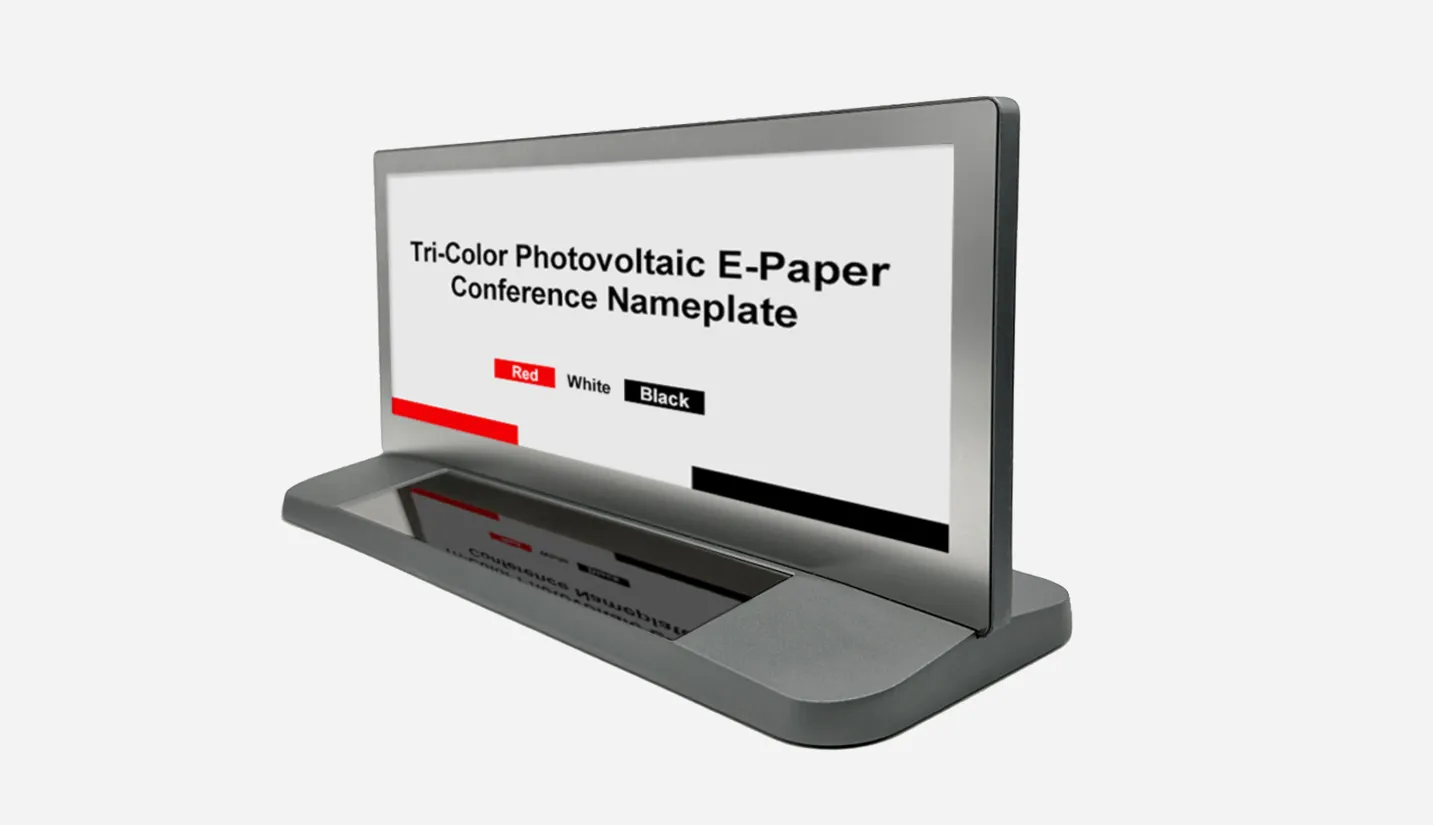

.webp "10.85-inch Tri-Color Photovoltaic E-Paper Conference Nameplate - 翻译中...")
Model | D7676 |
Display Size | 10.85-Inch dual-sided EPD |
Active Area | 259.76×91.68 mm |
Resolution | 1360 (H) × 480 (V) |
DPI | 133 |
Viewing Angle | Nearly 180°, anti-glare glass cover |
Colors | Black, White, Red |
Product Dimensions | 284 × 87 × 130 mm |
Weight | 780 ± 5 g |
Display Type | Bistable E-ink display |
Orientation | Landscape |
Viewing Angle | Nearly 180° |
Operating Temperature | 0°C ~ 40°C |
Storage Temperature | -25°C ~ 60°C |
Battery Capacity | 230 mAH |
Power Supply | Photovoltaic panel charging + lithium polymer battery |
Endurance | Approx. 10 hours/day under 300 Lux lighting; standby indefinitely |
Operating Current | Refresh: 50 mA; Standby: 0.2 mA |
Bluetooth Version | BLE 5.0 compatible |
NFC | ISO/IEC 14443-A |
Data Rate | 1 Mbps / 2 Mbps |
Channel Spacing | 2 MHz |
Frequency Band | 2.402 ~ 2.480 GHz |
Tansmit Power | -20 to +10 dBm (3 dB steps) |
Receiver Sensitivity | 97 dBm @ BLE 1 Mbps -103 dBm @ BLE 125 Kbps -90 dBm |
Working Mode 1 | Image transfer via NFC at the center of the display |
Working Mode 2 | Image transfer via Bluetooth from mobile phone (range ≥15 m, unobstructed) |
Working Mode 3 | PC control via Bluetooth base station (range ≥15 m, unobstructed) |
Mobile OS | Android (7.0 and above), HarmonyOS |
Server OS | Windows 7, Linux |
Cloud Server | Supported |
Offline Mobile Version | Android supported |
System Integration | Supports third-party system integration |
