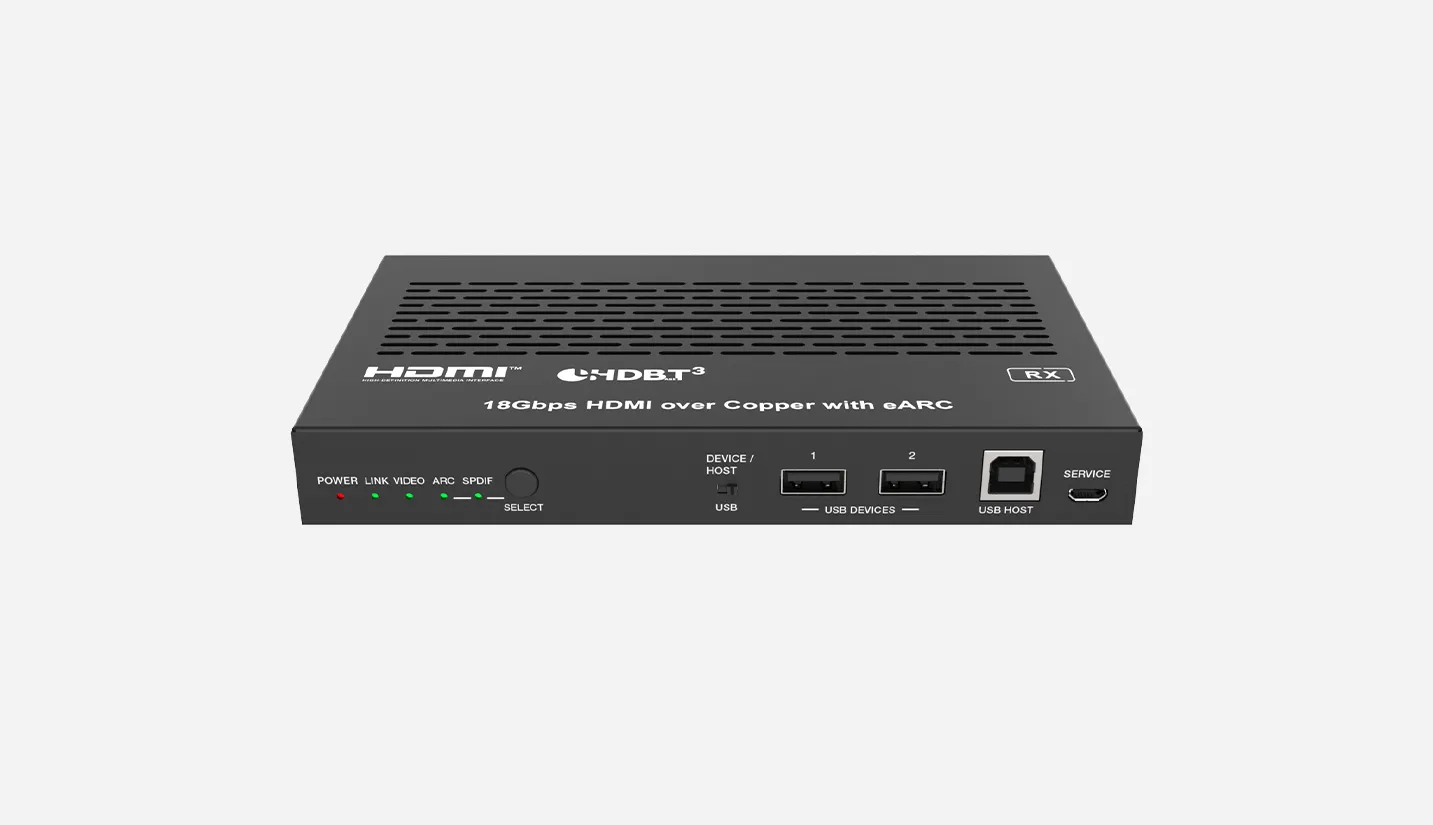

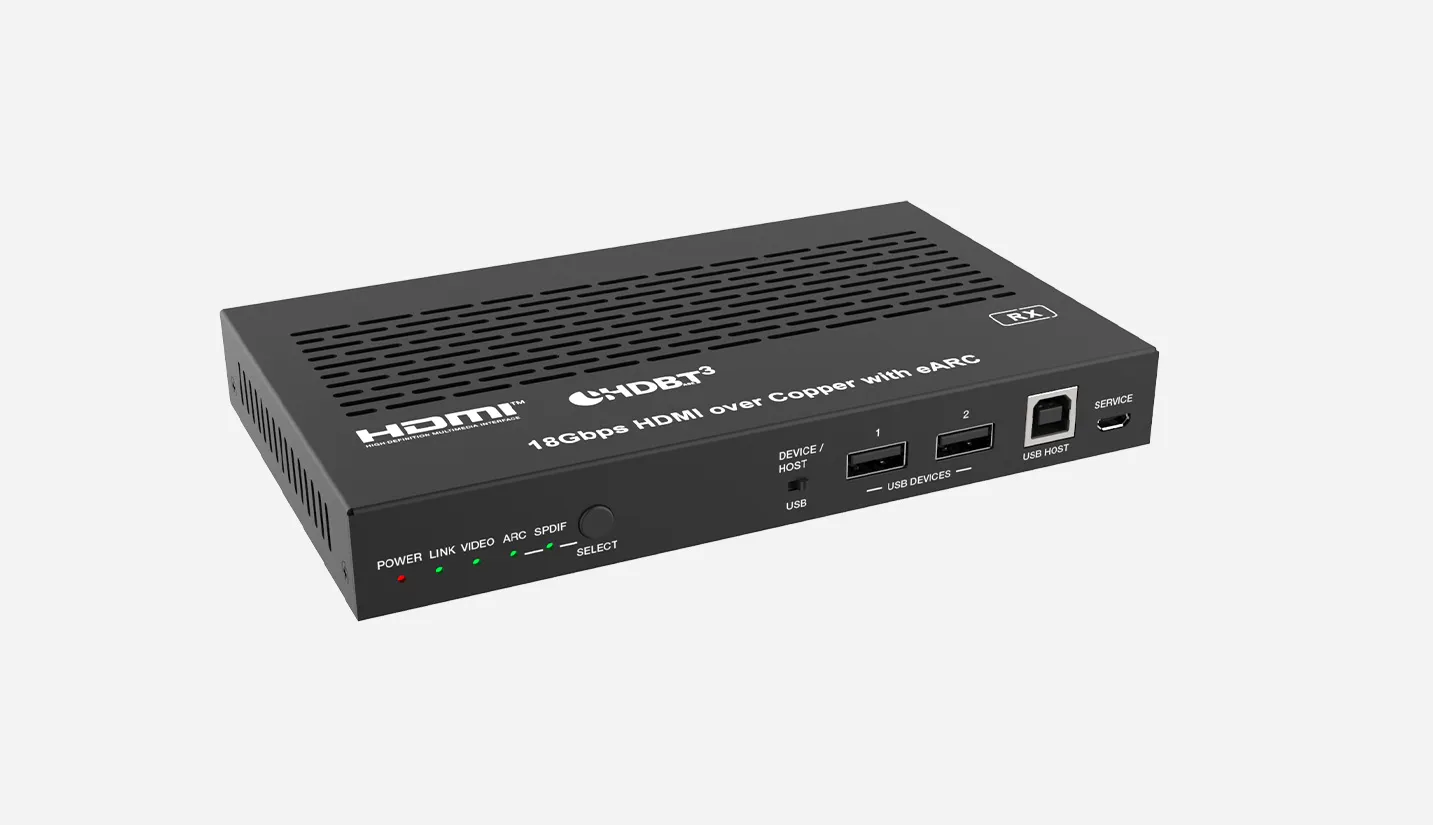

.webp "HDMI Ultra HD HDBaseT Extender (100m)")
Model | D6145R / D6145C | ||
HDMI Compliance | HDMI 2.0b | ||
HDCP Compliance | HDCP 2.2 | ||
Video Bandwidth | 18Gbps | ||
Video Resolution | Up to 4K@60Hz 4:4:4 | ||
HDBaseT Bandwidth | Main Link: 16Gbps; Return Link: 2Gbps | ||
HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG | ||
Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 | ||
Color Depth | 8/10/12-bit | ||
HDMI Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD | ||
L/R Audio Formats | PCM 2.0 | ||
SPDIF Audio Formats | LPCM2.0, AC3 5.1, DTS 5.1 | ||
IR Level | 12Vp-p | ||
IR Frequency | 20K - 60KHz | ||
USB Bandwidth | Up to 350Mbps | ||
Ethernet | 1000Mbps | ||
RS-232 | Up to 921600bps | ||
Transmission Distance | 100 m (via a single CAT6A/7 cable) | ||
ESD Protection | Human Body Model: +8kV (Air Discharge), ±4kV (Contact Discharge) | ||
Connections | |||
Transmitter | Input Port: 1×HDMI IN [Type A, 19-pin Female] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×HDBaseT OUT [RJ45, 8-pin Female] 1×SPDIF OUT [S/PDIF] 1×L/R OUT [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45] | ||
Receiver | Input Ports: 1×HDBT IN [RJ45, 8-pin Female] 1×SPDIF IN [S/PDIF] Output Ports: 1×HDMI OUT [Type A, 19-pin Female] 1×L/R OUT [3.5 mm Stereo Mini Jack] Control Ports: 1×IR IN [3.5 mm Stereo Mini Jack] 1×IR OUT [3.5 mm Stereo Mini Jack] 1×RS-232 [3-pin 3.81 mm Phoenix Connector] 1×SERVICE [Mini USB, Firmware Upgrade Port] 1×USB HOST [USB Type B] 2×USB DEVICES [USB Type A] 1×LAN [RJ45] | ||
Chassis | |||
Enclosure | Metal Enclosure | ||
Color | Black | ||
Dimensions | Transmitter / Receiver: 170mm(L)× 102mm(W)× 22mm(H) | ||
Weight | Transmitter: 425g, Receiver: 437g | ||
Power Supply | Input: AC100~240V 50 / 60Hz Output: DC24V / 1A (US/EU Standard, CE/FCC/UL Certified) | ||
Power Consumption | Transmitter / Receiver: 15.36W (POC) | ||
Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F | ||
Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F | ||
Relative Humidity | 20~90% RH (Non-Condensing) | ||
Resolution / Cable Length | 4K60-Meter | 4K30-Meter | 1080P60-Meter |
HDMI IN / OUT | 5m | 10m | 15m |
Note: For optimal performance, it is recommended to use a premium high-speed HDMI cable. | |||
