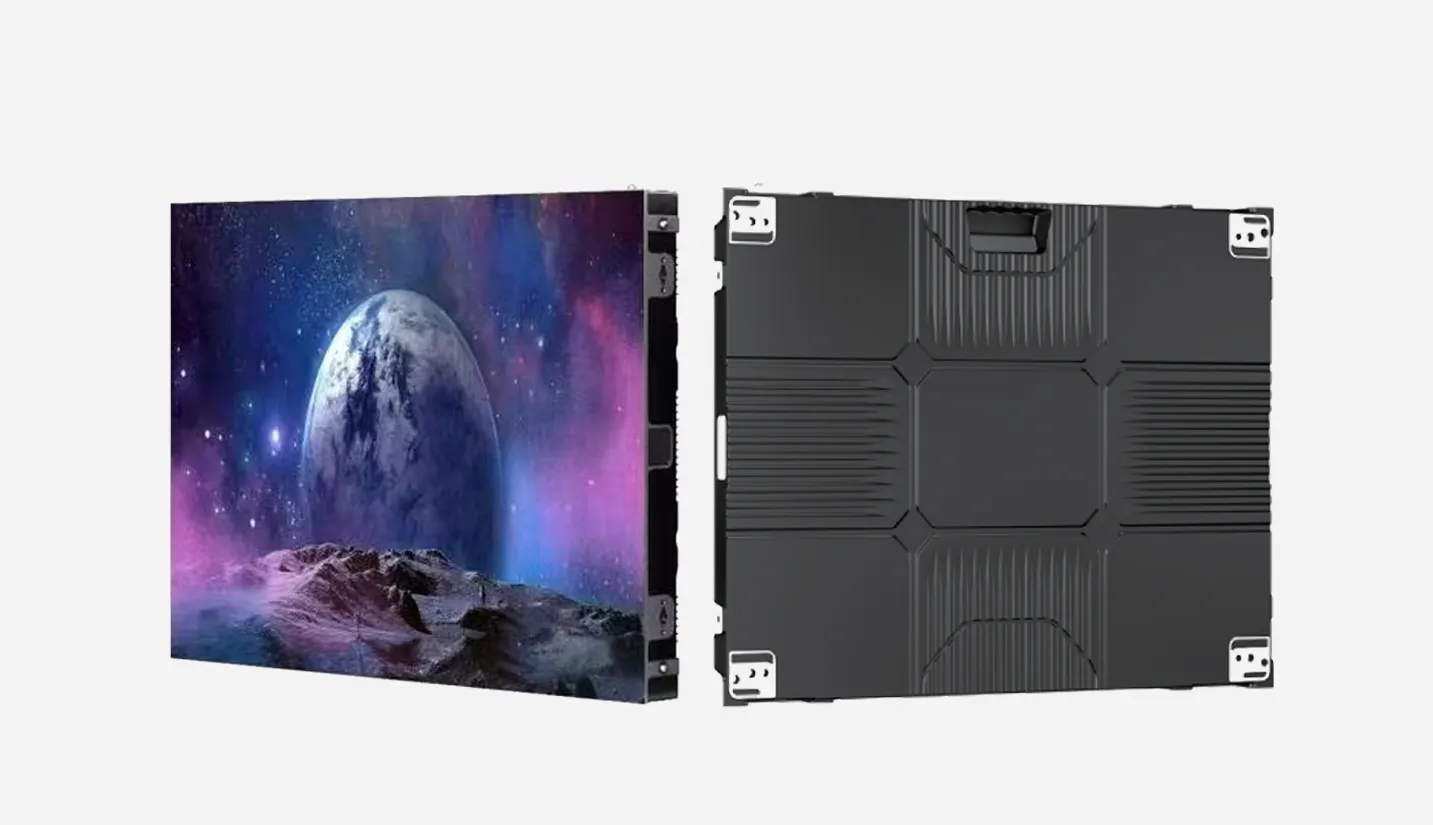

Indoor P1.86 Full-Color LED Screen - 翻译中... DP-N186CY

翻译中...
Bảng dữ liệu
Nhận báo giá
Chi tiết
Thông số kỹ thuật
翻译中...

Specifications of Indoor P1.86 Full-Color LED Screen DP-N186CY

Product Model


Color


IF (mA)

TEST

Rd (nm)

Typ

Iv (mcd)

Typ

Vf (V)

Typ

View Angle

(deg.)

SMD1515

Red

8

620

22

2.0

110

Green

5

525

38

3.0

110

Blue

3

470

5

3.0

110



Pixel Pitch

1.86mm

Pixel Density

289,050dots/㎡

Module Resolution

172 × 86 pixels (Width×Height)

Module Dimensions

320mm × 160mm × 14.2mm (Width×Height×Thickness)

Module Weight

Approx. 400g

Driving Method

16-bit Constant-Current Driver (PWM)

Scanning Method

1/43 Scan

Operating Voltage

DC5V±10%

Maximum Current

5.6A (Typical)①

Maximum Power Consumption

28W (Typical)②

Power Interface

VH4

Signal Interface

HUB75E (IDC16)

Brightness

≥700cd/㎡

Color Temperature

1000K-20000K (Adjustable)

Viewing Angle

170°

Optimal Viewing Distance

≥1.9m

Gray Scale Level

16 Bit

Brightness and Chromaticity Calibration

Support

Refresh Rate

≥3840Hz

Operating Environment

Indoor

Brightness Adjustment Range

0-255 (Adjustable)

Lifespan

100,000 Hours

Operating Temperature

-20℃-60℃

Operating Humidity

10%-90%RH Non-Condensing

Storage Temperature

-40℃- 80℃
