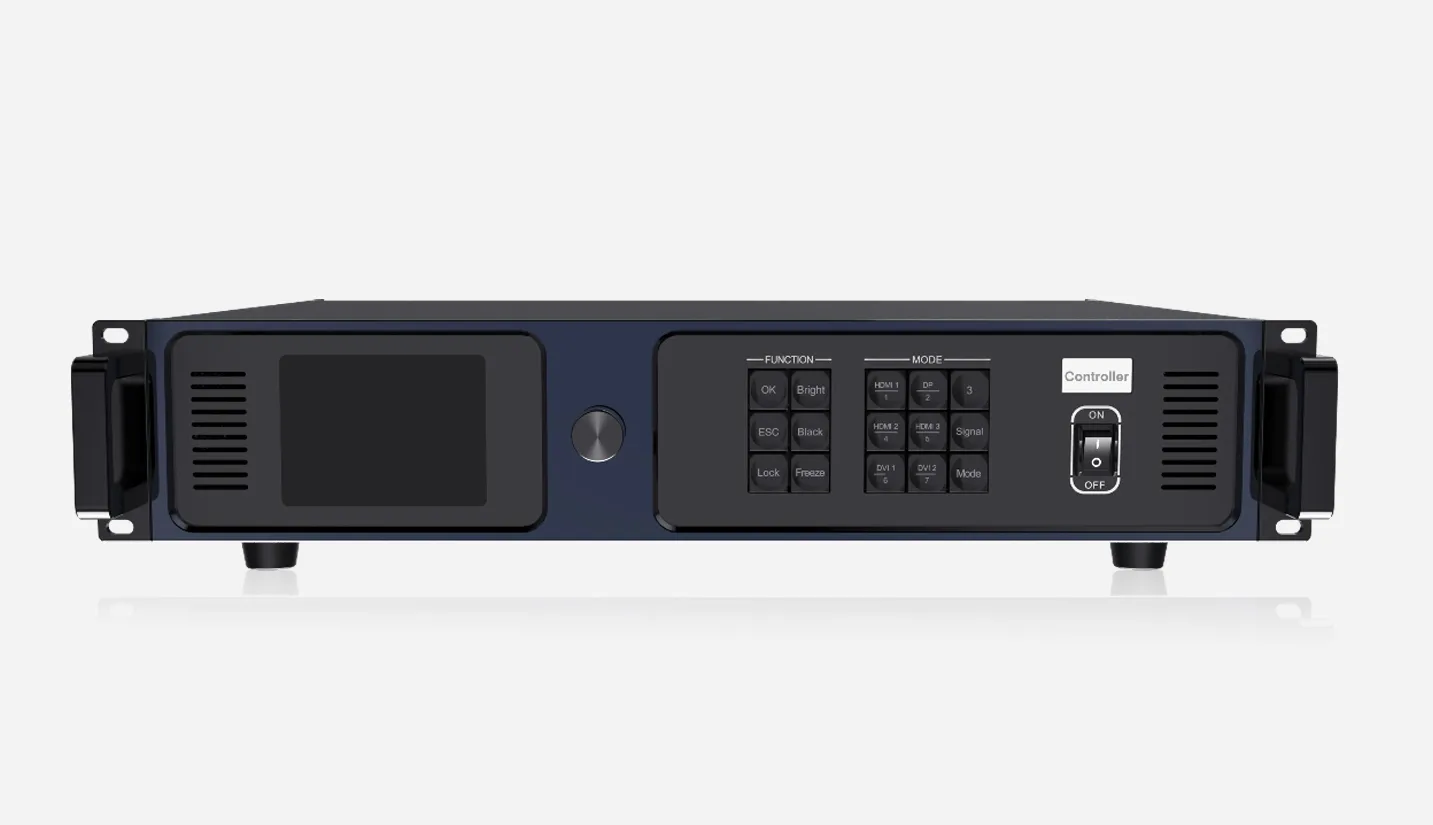

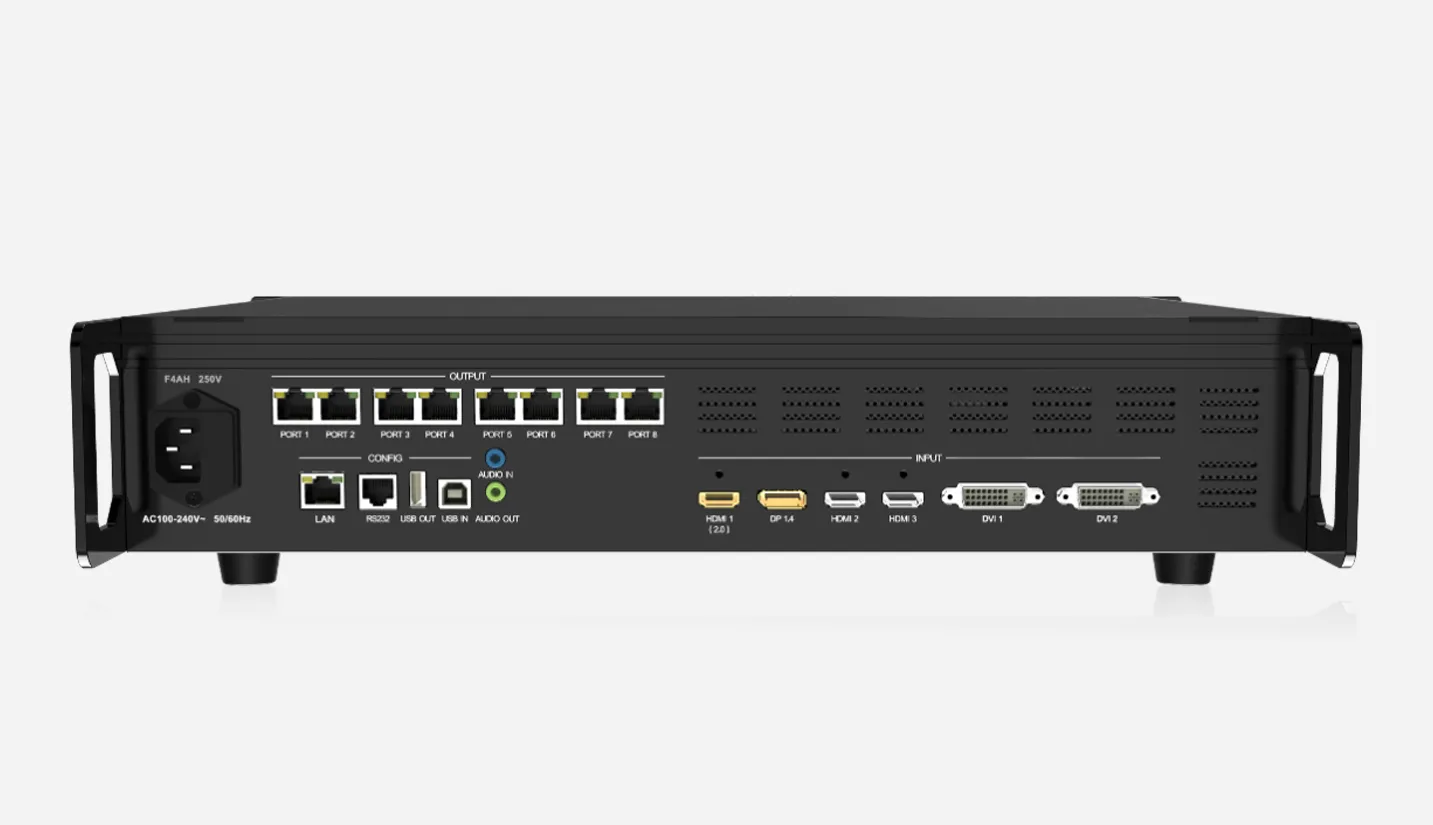

LED Video Controller - 翻译中... DP-X8E

翻译中...
Bảng dữ liệu
Nhận báo giá
Chi tiết
Thông số kỹ thuật
翻译中...

Specifications of LED Video Controller DP-X8E

Model

DP-X8E

Size

2U

Electrical Specifications

Input Voltage

AC100~240V, 50/60Hz

Power Consumption

50W

Operating Environment

Temperature

-20℃~70℃/-4°F~158°F

Humidity

0%RH~80%RH, non-condensing

Storage Environment

Temperature

-30℃~80℃/-22°F~176°F

Humidity

0%RH~90%RH, non-condensing

Device Specifications

Dimensions

W×H×L/482.6mm×88.0mm×414.1mm/19"×3.5"×16.3"

Net Weight

4.8kg/10.58lbs

Packing Specifications

Dimensions

W×H×L/525.0×150.0×495.0mm3/20.7"×5.9"×19.5"

Net Weight

1.8kg/3.97lbs

Technical Parameters

HDMI 2.0(A)

Standard

HDMI 2.0 specification, EIA/CEA-861 standard

Backward compatible with HDMI 1.4 and HDMI 1.3

Input

Format

Maximum Input Resolution

8bit

RGB444

4096×2160@60Hz

YCbCr444

YCbCr422

Frame Rate

23.98/24/25/29.97/30/50/59.97/60/120/144Hz

Support audio input

DP 1.4

Standard

DP 1.4 specification, support EDID

Input

Format

Maximum Input Resolution

8bit

RGB444

4096×2160@60Hz

YCbCr444

YCbCr422

Frame Rate

23.98/24/25/29.97/30/50/59.97/60/120/144Hz

Support audio input

HDMI 1.4

Standard

HDMI 1.4 specification, HDCP1.4 compliant

Input

Format

Maximum Input Resolution

8bit

RGB444

1920×1200@60Hz

YCbCr444

YCbCr422

Frame Rate

23.98/24/25/29.97/30/50/59.97/60Hz

Support audio input

DVI

Standard

Support HDCP

Input

Format

Maximum Input Resolution

8bit

RGB444

1920×1200@60Hz

YCbCr444

YCbCr422

Frame Rate

23.98/24/25/29.97/30/50/59.97/60Hz
