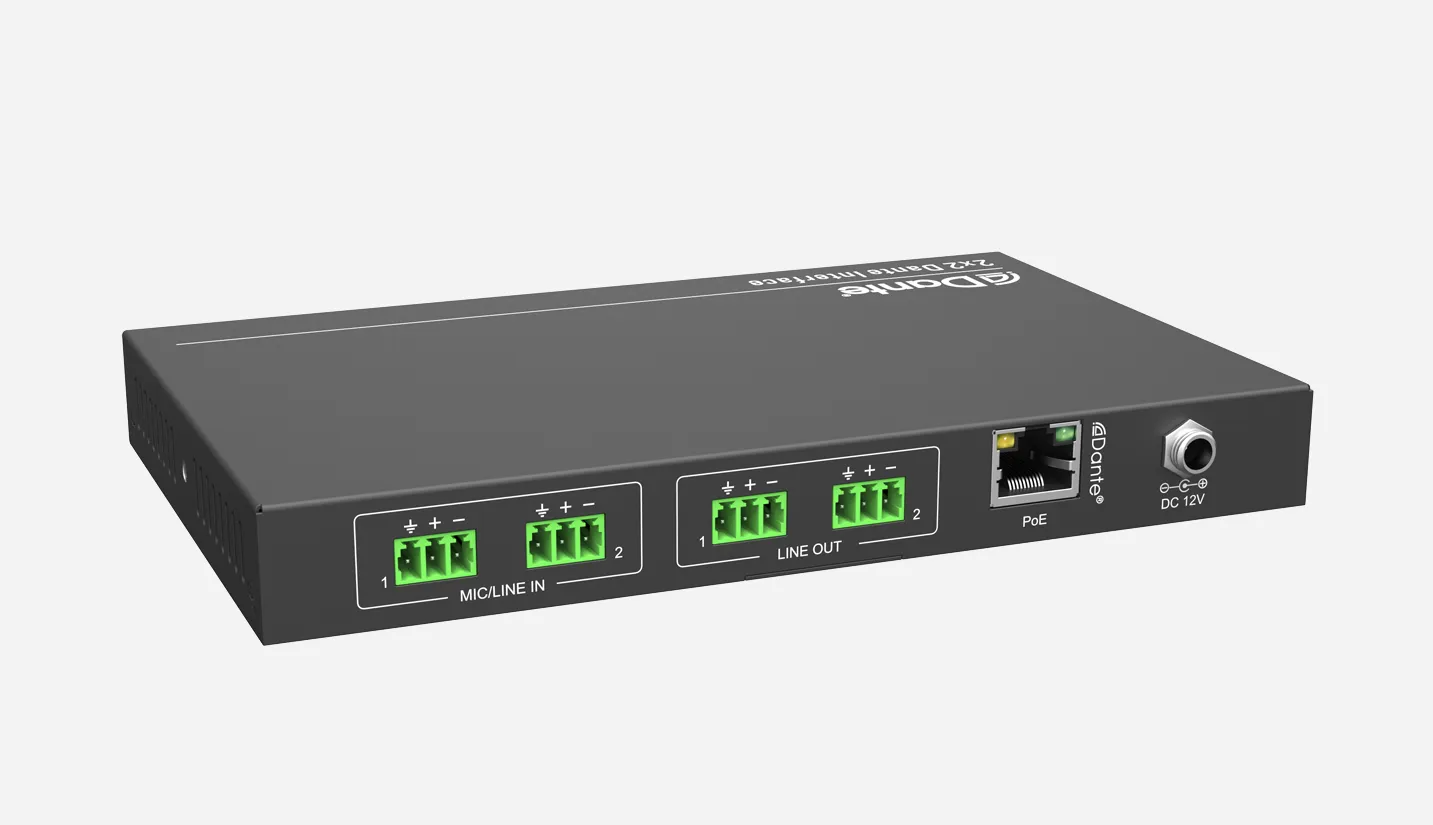

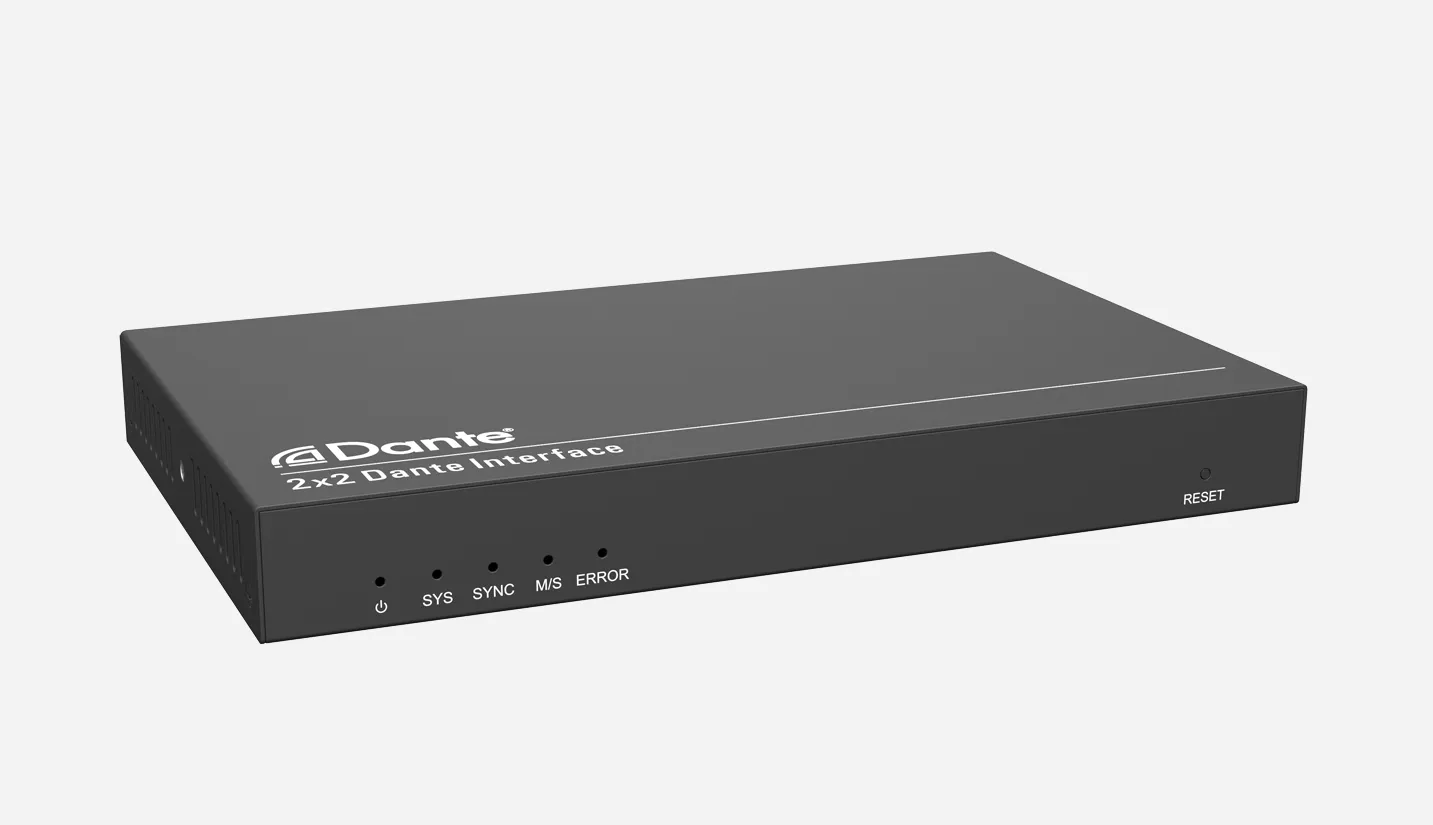

Model | DT2002 | |
Input | ||
Input | (2) MIC/LINE IN | |
Input Connector | (2) 3-pin Green Terminal Blocks | |
Phantom Power | 48V, software selectable for each input | |
Output | ||
Output | (2) LINE OUT | |
Output Connector | (2) 3-pin Green Terminal Blocks | |
Output Type | Balanced line level with automatic muting on loss of Dante signal | |
Audio Performance | ||
Gain | Input: 0 ~ +48dB, 6dB per step Output: -60 ~ 0dB, 1dB per step | |
Max Level | Input: +18dBu @ 0dB input gain Output: +18dBu @ 0dB output gain | |
Input Impendence | >1.8kΩ | |
Effective Input Noise (EIN) | -119dB @ 48dB gain | |
Output Noise | <-79dBu @ 0dB gain | |
THD | <0.05% at any gain | |
Sample Rate | 44.1kHz or 48kHz | |
Control | ||
Control Port | (1) Dante Network | |
Control Connector | (1) RJ45 | |
General | ||
External Power Supply | Input: AC 100~240V, 50/60Hz; Output: 12V DC 1A | |
Operation Temperature | -10℃ ~ +55℃ | |
Storage Temperature | -25℃ ~ +70℃ | |
Relative Humility | 10%-90% | |
Dimension (W*H*D) | 185mm x 115mm x 22mm | |
Net Weight | 500g | |
